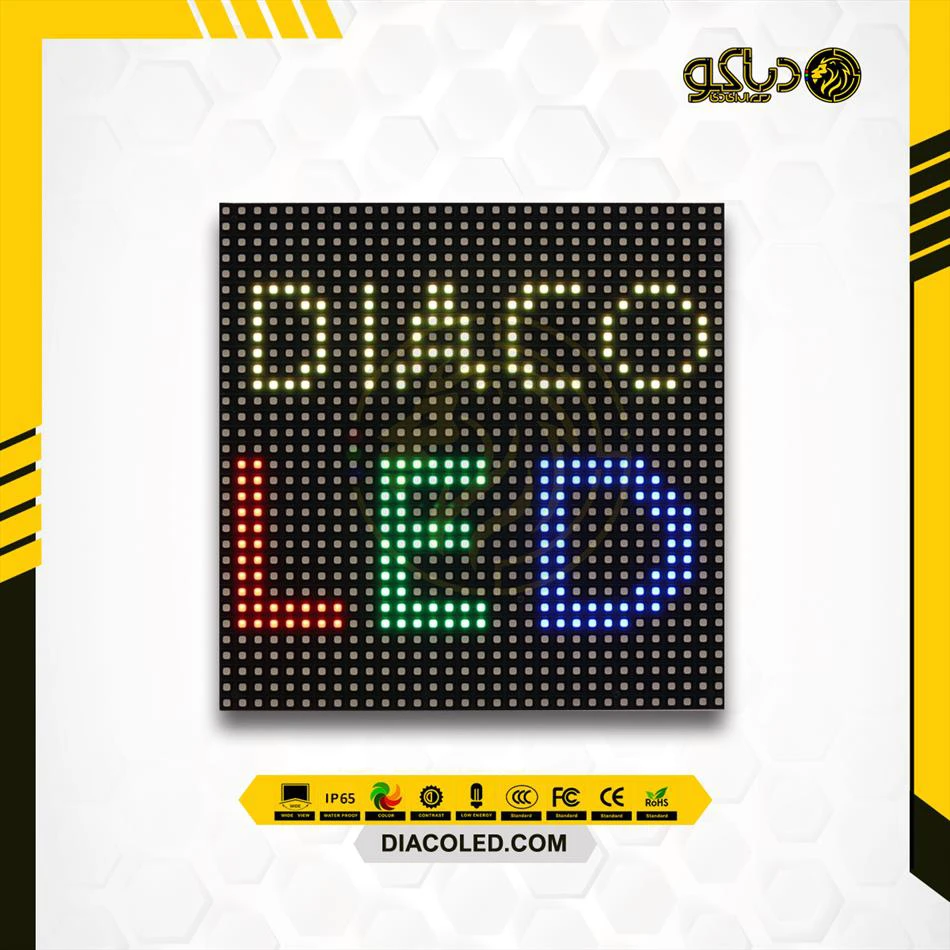

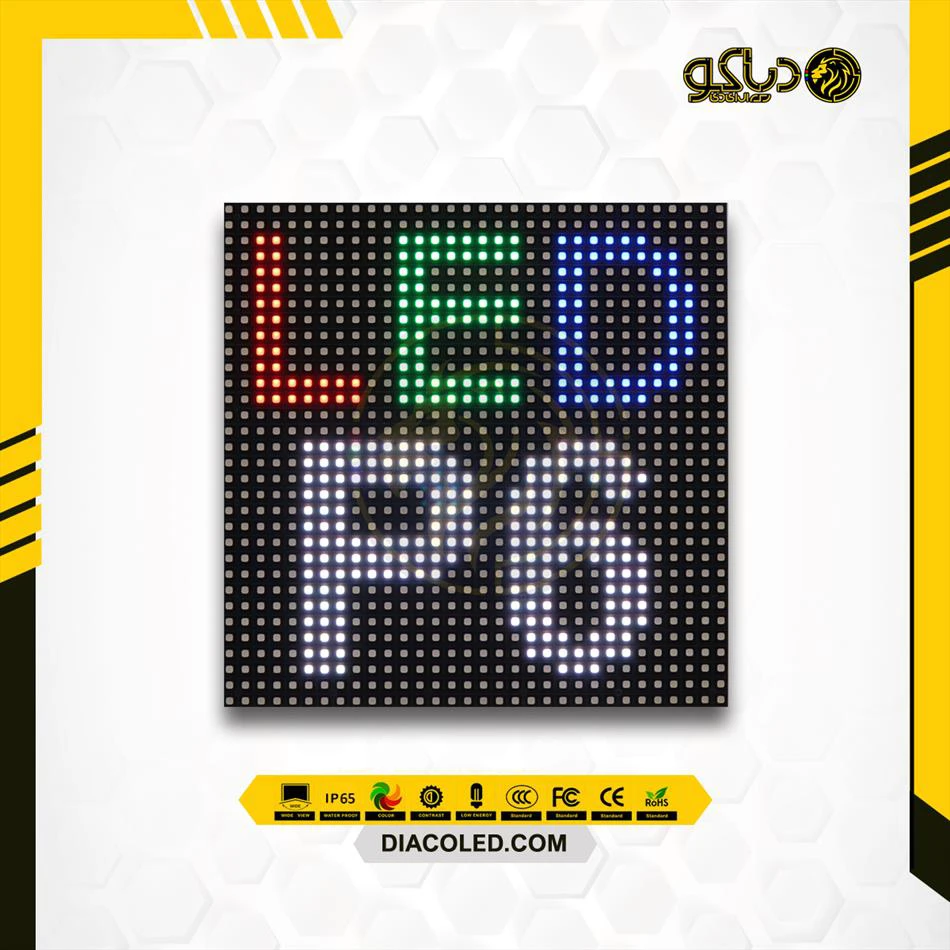

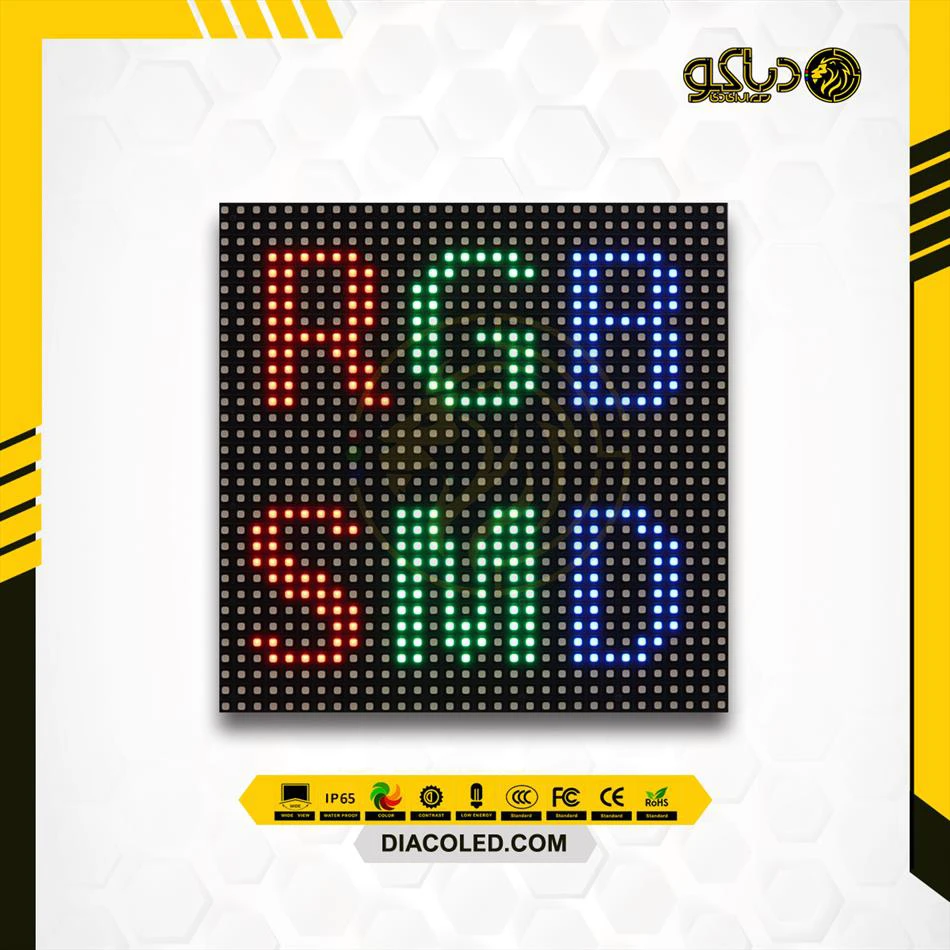

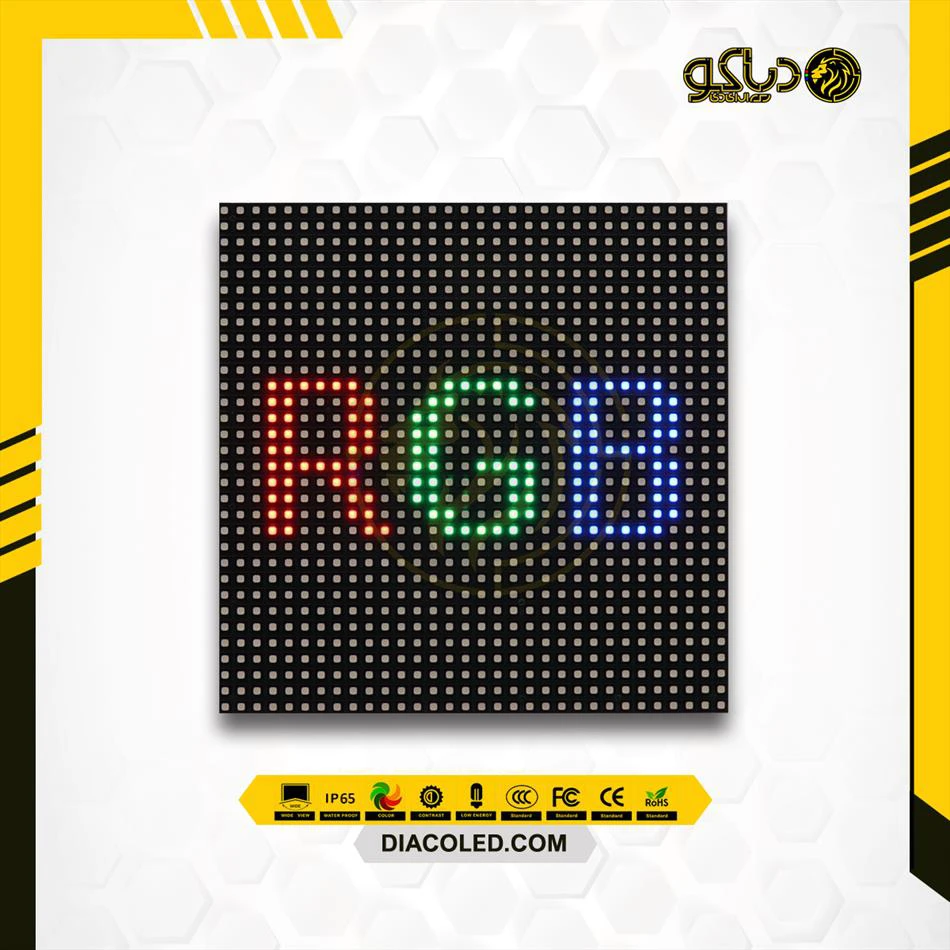

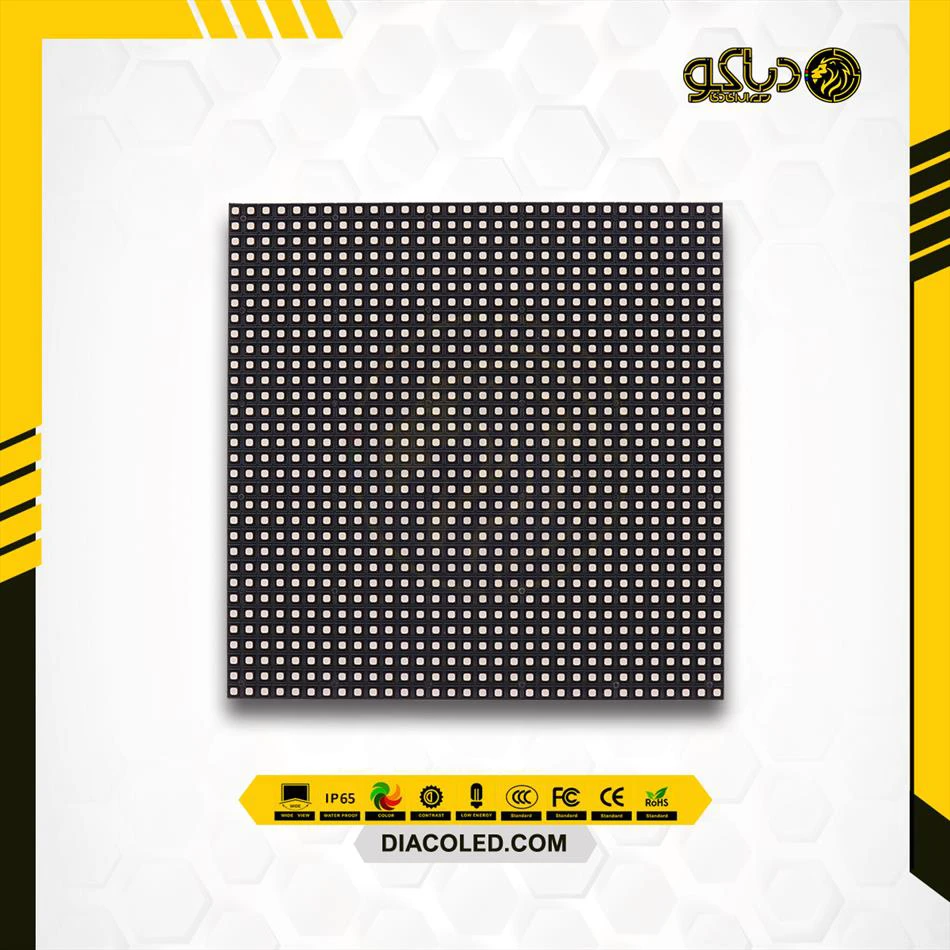

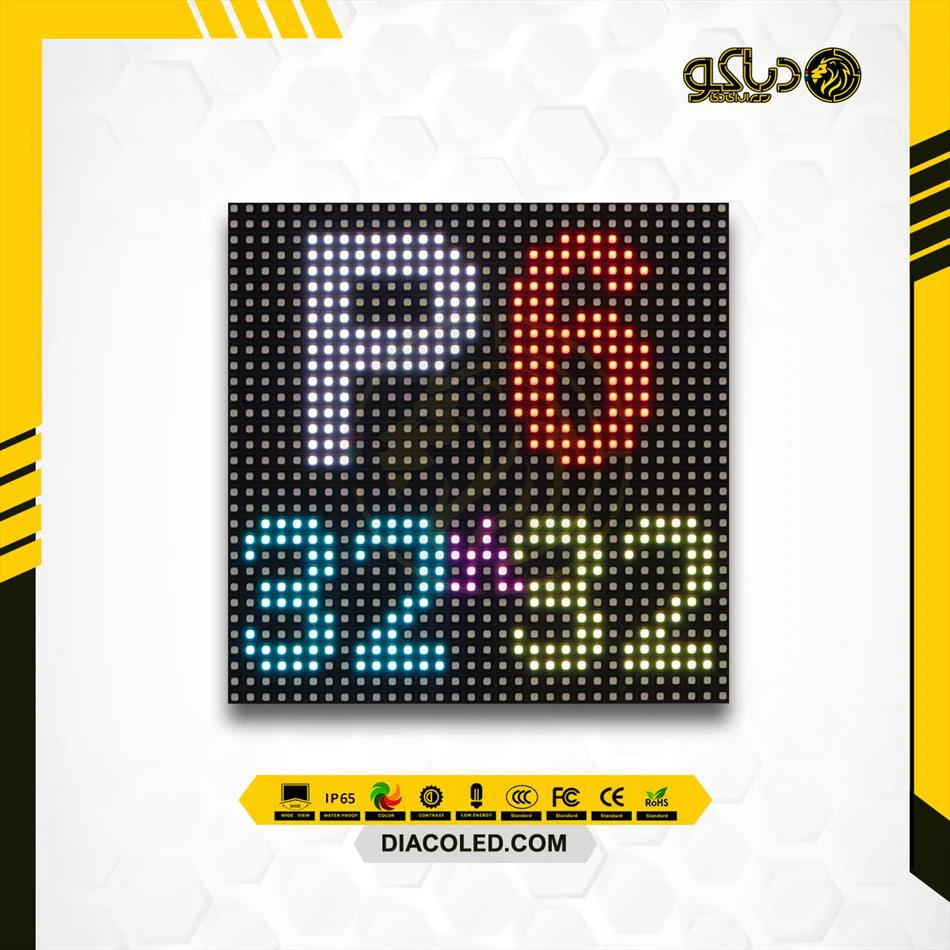

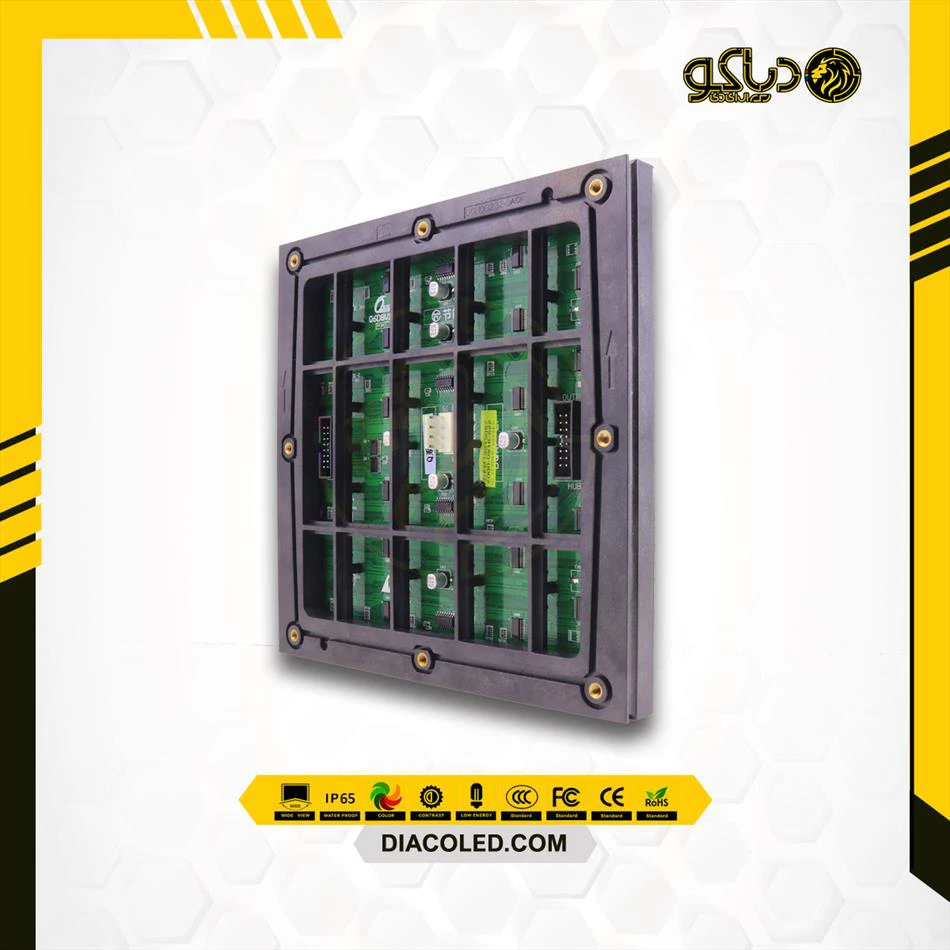

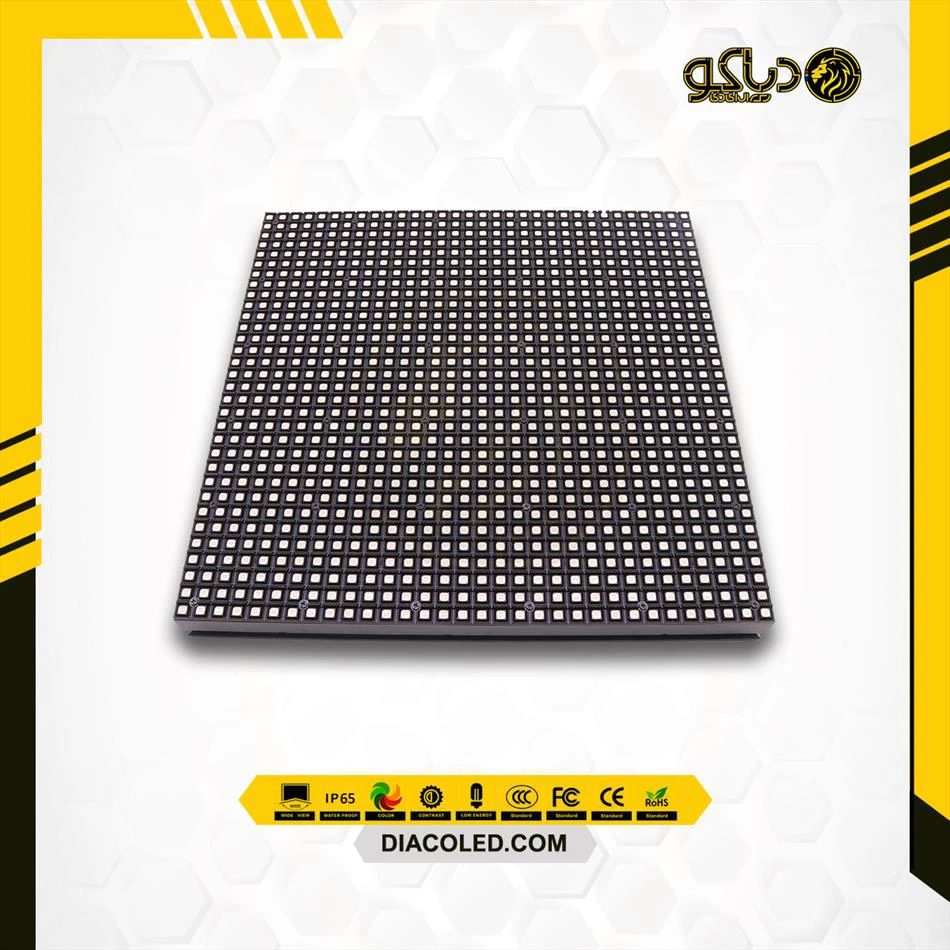

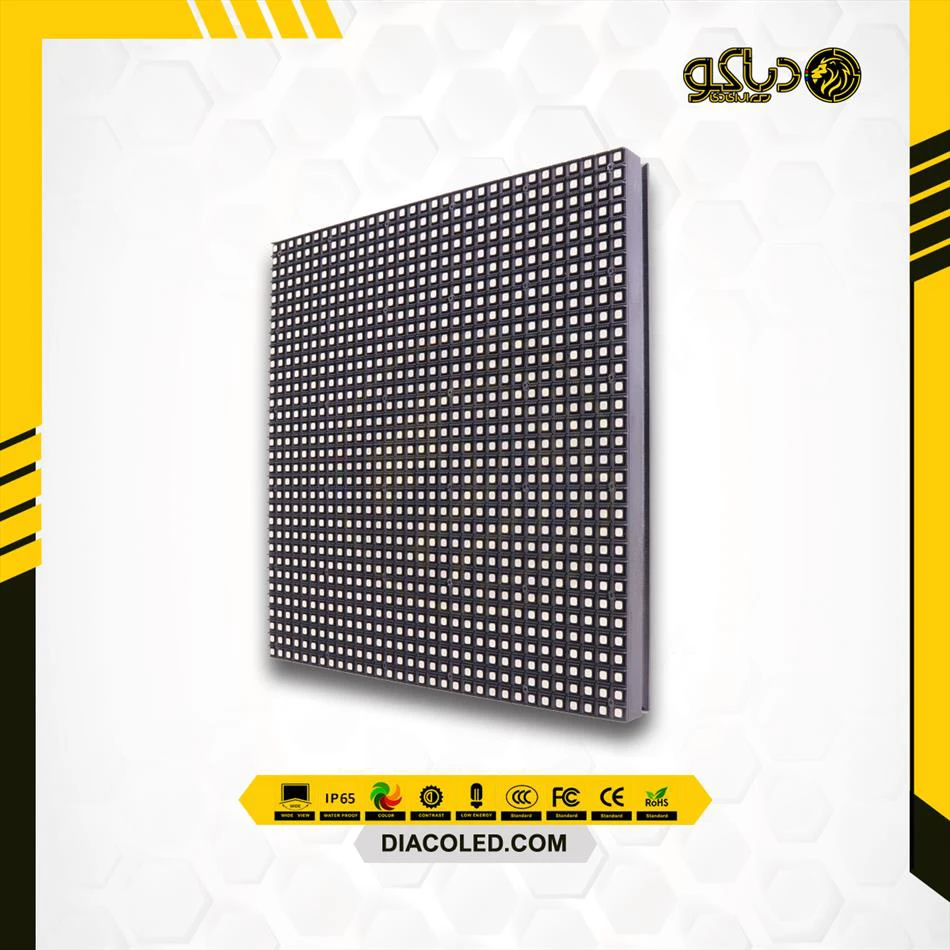

LED Module full color P06-3IN1-SMD-3535

LED Module full color P06 3IN1 SMD 3535
Code :
DLP-1210

General specifications

module size

height: 19.2 cm - Width: 19.2 cm

Module resolution

Width 32 * Length 32 pixels

Pixel pitch

P 6

Brightness

7500cd/sqm

مشخصات کلی
title
:
Count :

باشگاه مشتریان

Username

امکان خرید اقساطی تا سقف 200 میلیون تومان

ارسال رایگان به سراسر کشور

دسترسی رایگان به ویدیوهایی آکادمی تیتانا

جایگزینی نامحدود فیکسچرهای فیلر

نقد و بررسی
مشخصات فنی
Module details
module size

height: 19.2 cm - Width: 19.2 cm

Module resolution

Width 32 * Length 32 pixels

Pixel pitch

P 6

Display function

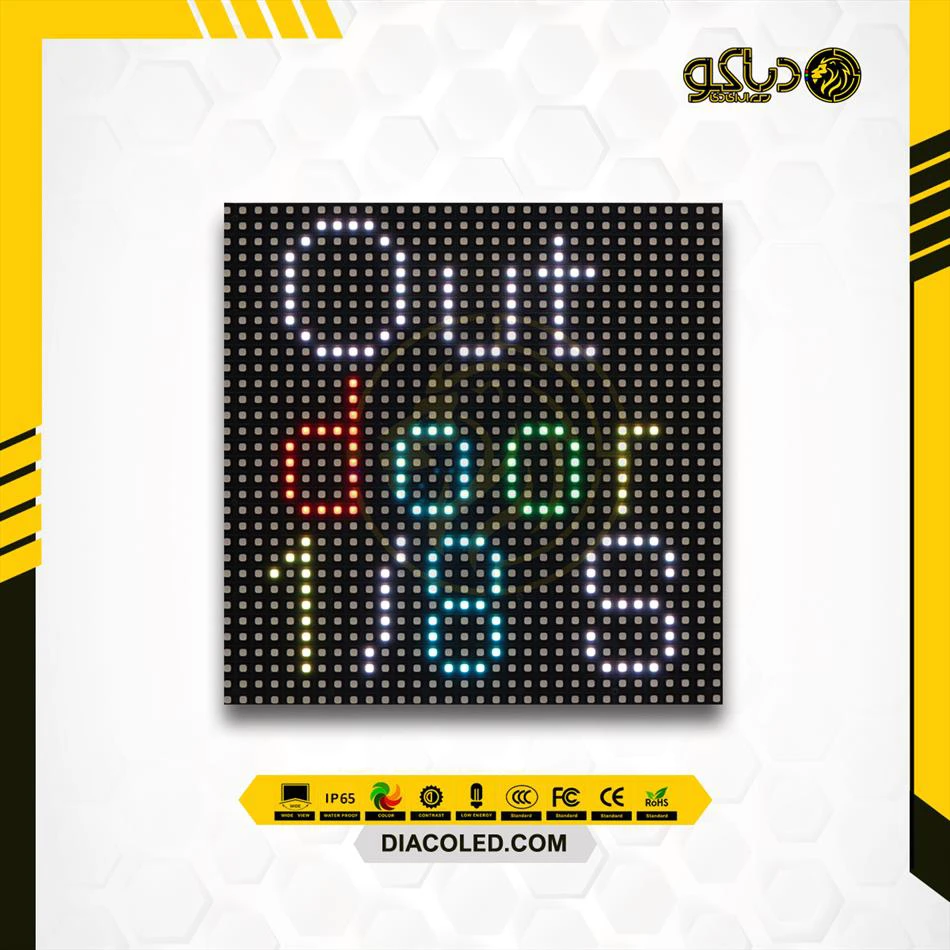

View text, photos, animations, videos, tables and more

Pixel density per square meter

27.500Pixel

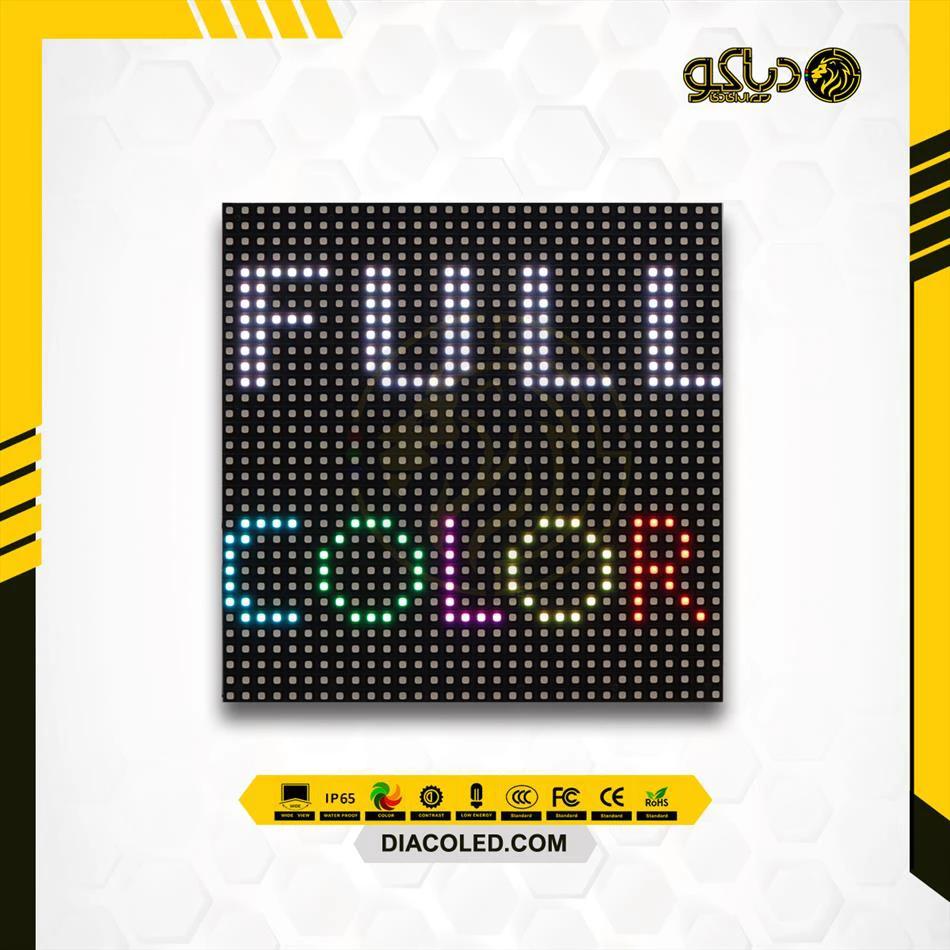

color

Full color

screen

Less than 0.5 mm

Pixel configuration

1Red - 1Green - 1Blue

Gray Scale

16.7M colors(Synchronized)

Brightness

7500cd/sqm

Module thickness

15mm

Hub type

Hub 75

Gap Between Modules

No

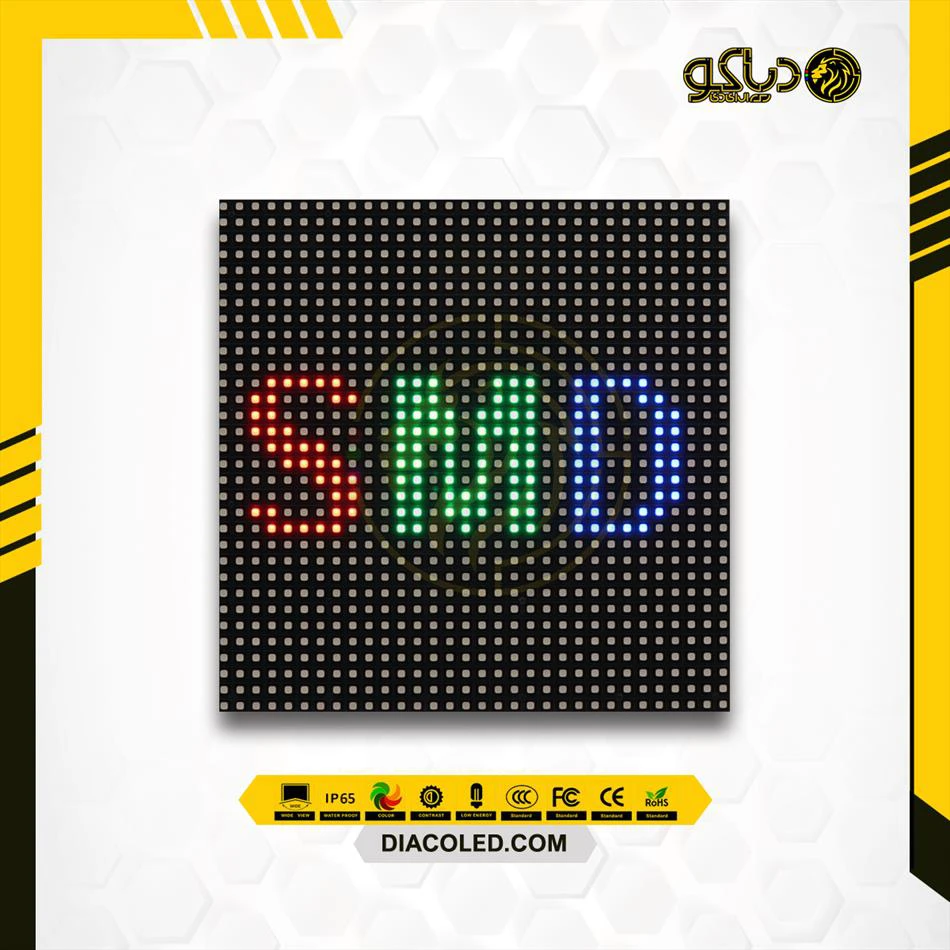

LED type

SMD3535-3IN1

Power supply
Average energy consumption

350-400w

Maximum power consumption

900-950w

AC input voltage

AC220V / 50 hz or AC110V / 60 hz

DC input voltage

4.8-5.5w

Maximum current consumption of each module

7.5-8A

Main technical parameters
Brightness control

100degrees - control through software or automatically

Refresh frequency

≥1920 Hz

Image playback frequency

120Hz

Module operating temperature

-20°C~+65°C

Moisture tolerable

10%~95%

The best viewing distance

5 to 200 meters depending on the size of the screen

Maximum horizontal viewing angle

160Degree

Maximum vertical viewing angle

120Degree

Average downtime without failure

50,000 hours

LED lifespan

100,000 hours

Module startup type

1/8Scanning

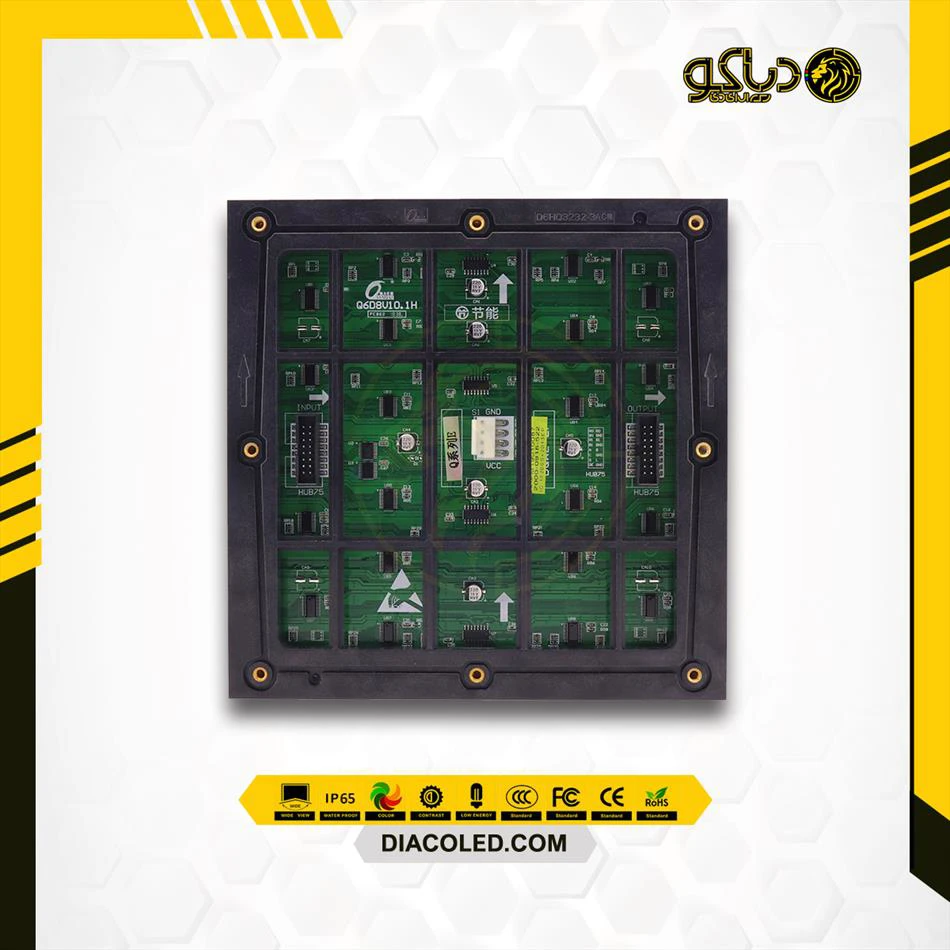

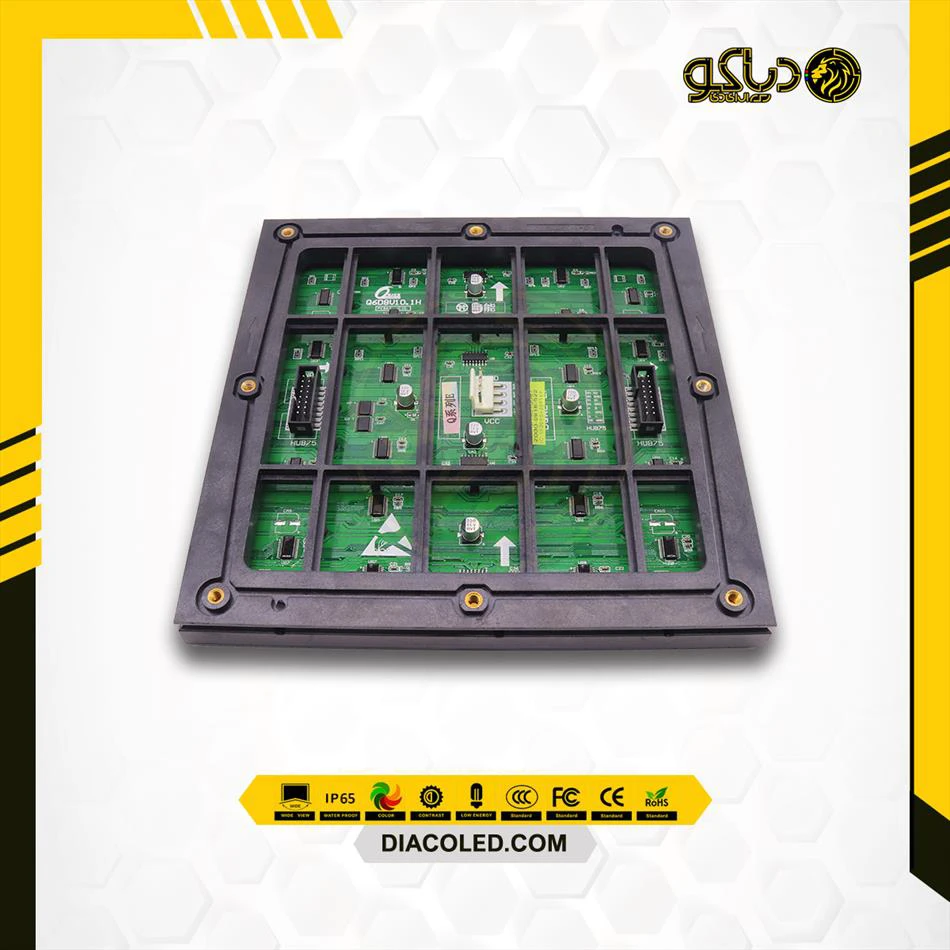

Printed circuit board type

2 layers

Continuous working time

More than 48 hours

Protection level

IP65

The rate of collapse

After 5 years

IP

IP45

Usage environment

Outdoor

Noise

NO

Control system
Control card

.../Huidu/novastar/linsn

Operating system

WIN 98/WIN2000/WIN NT/XP/7/8/10

Mobile items
Power Cable

Yes

Flat cable

Yes

screw

NO

Sealing washer

YES
